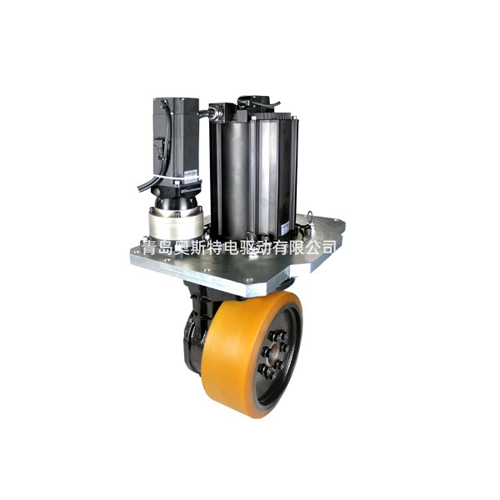

HL343 is a high-speed heavy-duty drive wheel custom-developed for high-load scenarios, with a maximum speed of 25 km/h.
Model number | HL343-AC4500-48-22 | |
travel motor | motor type | AC induction motor |
Motor power kW | 4.5 | |
voltage V① | 48 | |
Rated current A | 107 | |
Rated torque Nm | 14.8 | |
Rated speed r/min | 2890 | |
Speed fbk sel | Incremental encoder | |
Gearbox | Reducer type | Secondary gear reduction |
Reduction ratio | 22.32：1 | |
Brake | Brake torque Nm | 40 |
Rated voltage V | DC24 | |
Tyre | Wheel material | Polyurethan/Solid rubber |
Wheel size | φ343X140 | |
Steering part | motor type | permanent magnet synchronous servo motor |
Motor power kW | 0.75 | |
voltage V① | 48 | |
Rated current A | 19 | |
Rated torque Nm | 2.39 | |
Rated speed r/min | 3000 | |
Reducer type | Secondary planetary gear reduction | |
Reduction ratio | 300:1 | |
Speed fbk sel | Absolute encoder | |
Other | Steering limit angle° | ±110° |
Travel speed m/min | 0-139 | |
Rated traction N | 1700 | |
Carrying capacity Kg | 3000 | |
net weight Kg | 120 | |
High-Toughness Rubber Tire: Made of wear-resistant rubber, it combines excellent tear resistance and strong grip, significantly enhancing anti-slip performance. Specifically designed for outdoor complex road conditions, it adapts to various ground surfaces.
Powerful AC Motor Drive: Equipped with a high-torque AC motor, it provides continuous and stable power output for vehicles, easily handling heavy-load transportation requirements.
Application Scenarios:
Suitable for industrial equipment such as AGV pallet trucks, port/parking lot transfer vehicles, etc. Performance parameters can be flexibly adjusted according to actual usage scenarios to provide customized solutions that meet special requirements under different working conditions.
Contact us for a drive system solution for your AGV.
