Tire Material Options：Supports customization of polyurethane (PU) or rubber tires. PU tires offer excellent wear resistance, suitable for high-load industrial floors; rubber tires provide strong grip, adapting to complex outdoor road conditions to meet diverse application needs.
Modular Design：Multiple wheel diameter sizes (specific parameters to be supplemented) fit different vehicle structures, enabling quick integration into AGVs, logistics trolleys, heavy-duty equipment (warehousing equipment), etc.
| Main performance parameter | ||

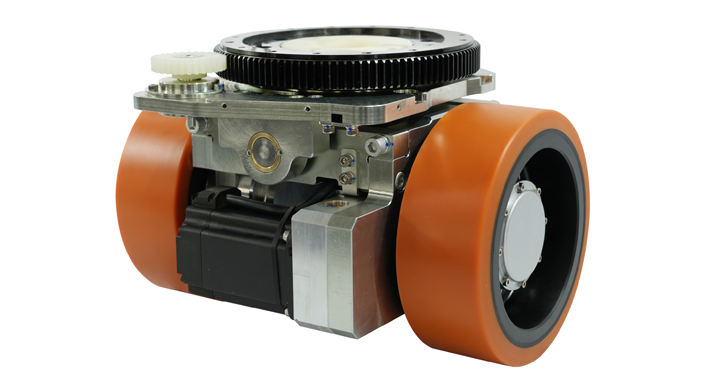

| Model | HW220-SM1000-48-46-DS | |
| perfomance index | parameter | |
| Travel motor | Motor type | Permanentmagnet synchronous servo motor |
| Motor power KW | 1kw(two) | |
| Voltage V | 48 | |
| Rated current A | 26.4 | |
| Rated torque Nm | 3.18 | |
| Rated speed r/min | 3000 | |
| Encorder type | Incrmental encorder | |
| Gearbox | Reducer type | Secondary gear reduction |
| Reducer ratio | 45.5 | |
| Brake | Brake torque Nm | 3.2 |
| Rated Voltage | DC24 | |
| Wheel | Tyer material | Polyurethane/Rubber |
| Wheel size | φ220X80 | |
| Other | Steering limit angle | ±180° |
| Travel speed m/min | 0-45 | |
| Rated traction N | 2380 | |
| Carrying capacity Kg | 1500 | |
| Net weight Kg | 150 | |
Motor power optional Used for mobile robots (AGV), pallet stackers, pallet trucks, sweepers, aerial work trucks, etc. | ||
Contact us for a drive system solution for your AGV.
