What is a vertical drive wheel?

A vertical drive wheel is a compact drive system commonly used in AGVs, forklifts, and industrial automation equipment. It integrates the motor, gearbox, and wheel into a vertical structure to improve space efficiency and maneuverability.

What is the difference between a vertical drive wheel and a traditional drive wheel?

The main difference is the motor layout. A vertical drive wheel uses a vertically mounted motor structure, while traditional drive wheels often use horizontal configurations. Vertical designs help reduce installation space and improve integration in robotics applications.

Where are vertical steering wheels used?

Vertical steering wheels are wheels for AGV , electric forklifts, and warehouse automation systems. They support smooth steering control and precise navigation in narrow industrial environments.

Automated Vertical Drive Wheel Forklift



Typical vertical steering wheels for forklift-type AGVs, also known as the vertical drive wheel or forklift drive wheel, feature AC induction traveling motors and steering absolute servo motors. These systems support various control methods such as CANopen, Modbus, EtherCAT buses, and pulses. The mature gearbox process has the characteristics of high bearing and high reliability. The easy detachable wheel design, has the characteristics of low heat generation, low failure rate, and easy maintenance. The rotary mechanism is made using the hard-toothed surface gear grinding process, which is easy to achieve high-precision control.

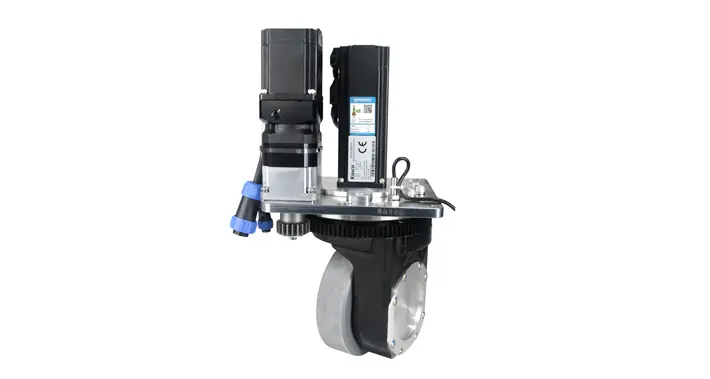

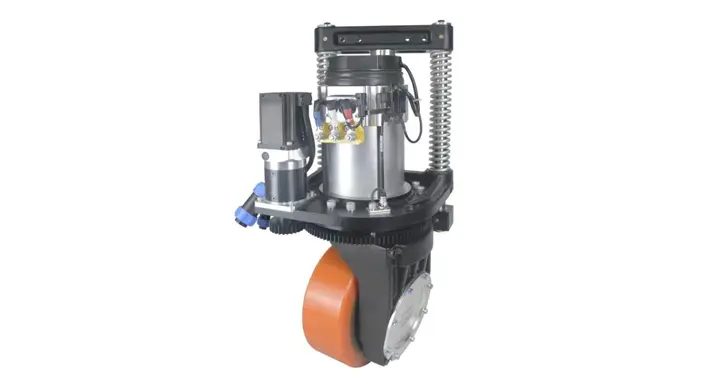

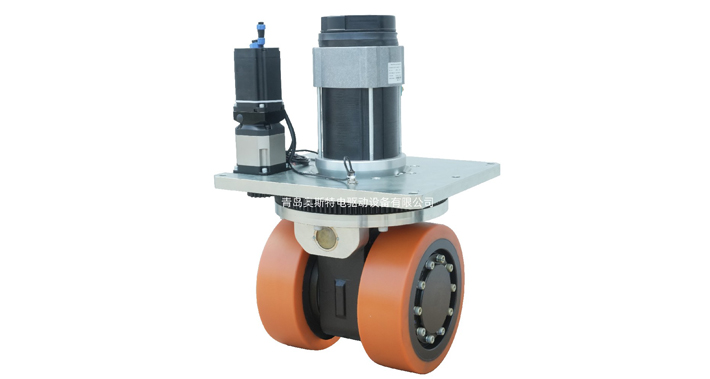

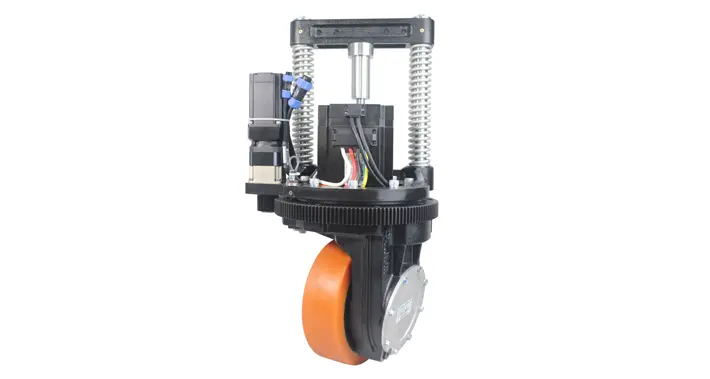

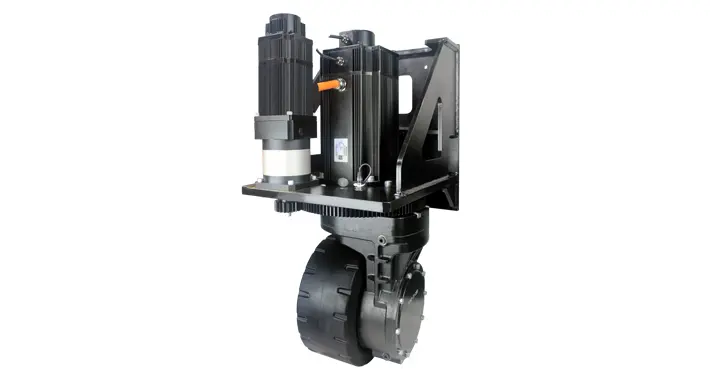

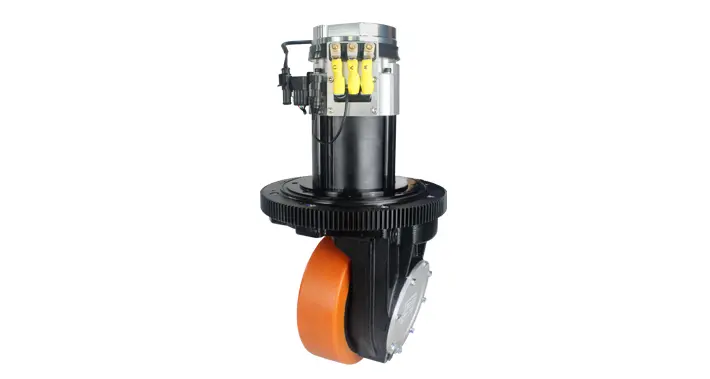

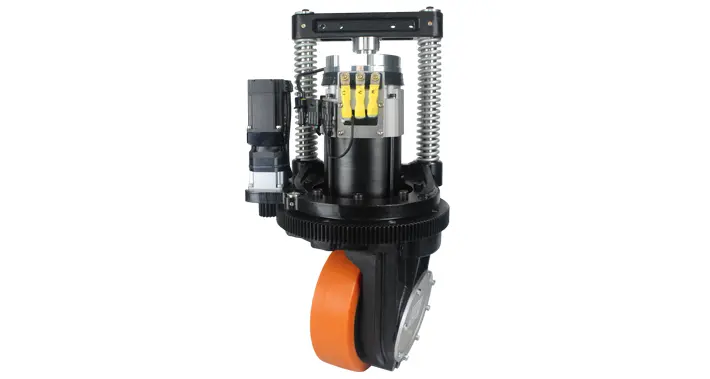

Types of Vertical Drive Wheel for Choice

How to Choose the Right Vertical Drive Wheel?

Load Capacity (e.g., 500kg vs. 2,000kg)
Speed & Torque (RPM & Nm requirements)
IP Rating (Water/dust resistance for outdoor use)
Voltage & Power (24V/48V options)

Benefits of Vertical Drive Wheels in AGVs

Space Efficiency

Instant Directional Response

Heavy-Duty Performance

Smart Compatibility

Compact design for narrow aisles with small turning radius

Enhanced control for precise load positioning

Robust construction withstands continuous high-intensity cycles

Plug-and-play connectivity with major forklift control systems
