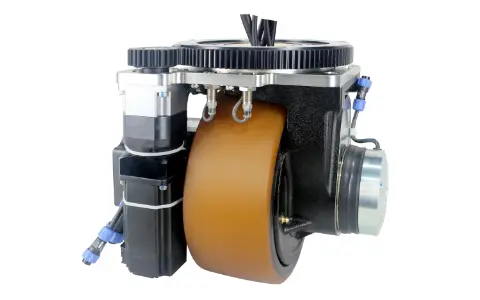

HW250 Horizontal Drive Wheel

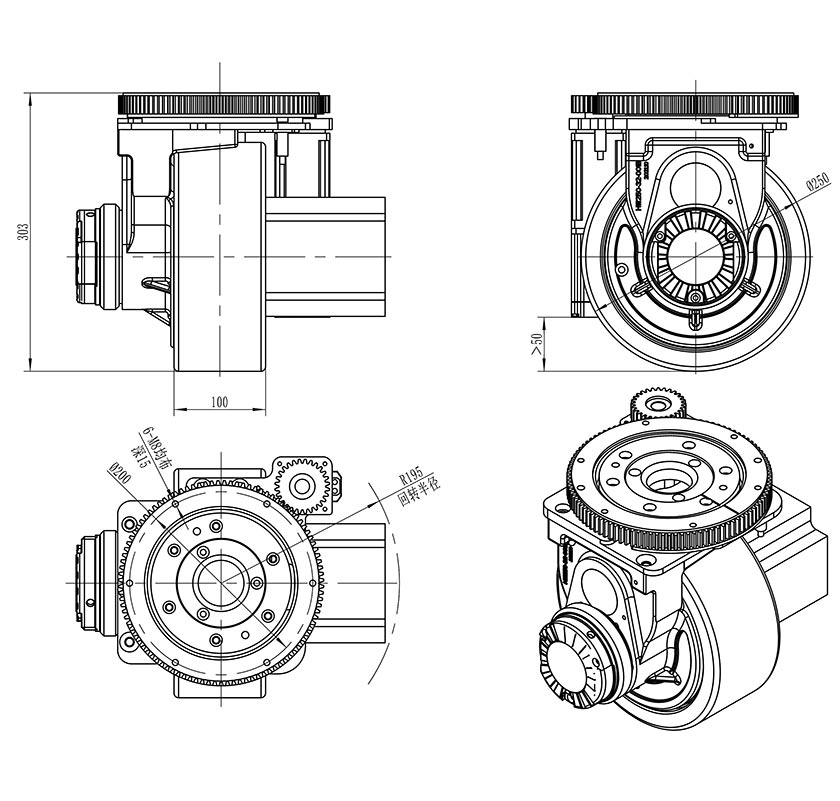

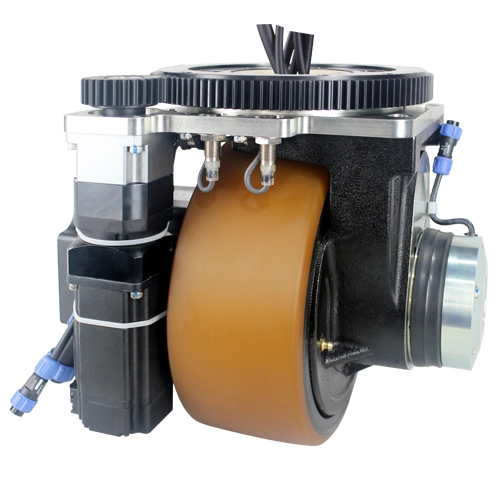

Specification of HW250 Horizontal Drive Wheel

Key Features of HW250 Horizontal Drive Wheel

1. Horizontal steering (“horizontal drive”) design
   The wheel pivots/steers along a horizontal axis, suitable for AGV designs where drive units need to steer in-plane.

2. Support for multiple control interfaces
   It supports CANopen, Modbus, EtherCAT, as well as pulse-based control.

3. High-reliability planetary (secondary) gearbox
   Uses a secondary reduction gearbox with good bearing capacity and reliability.

4. External brake & detachable wheel design
   The wheel is detachable and includes an external brake mechanism.

5. Hard-toothed surface gear grinding for the steering mechanism
   The rotary (steering) mechanism uses a gear-grinding process on the tooth surface to achieve higher precision control.

6. Two performance variants (HW250-SM1500-48 and HW250-SM2500-48)
   Some of the spec differences:

   Parameter	HW250-SM1500-48	HW250-SM2500-48
   Travel motor power	1.5 kW	2.5 kW
   Rated travel torque	5 Nm	7.96 Nm
   Gear reduction ratio (drive)	37.43:1	31.43
   Brake torque	8 Nm	16 Nm
   Wheel size / tyre	Ø250×100 mm, polyurethane / rubber	same
   Steering motor & reduction	0.4 kW, 196:1 (or 327:1 in variant)	same
   Steering limit angle	±110°	±110°
   Travel speed	0–70 m/min	0–75 m/min
   Rated traction	1140 N	1800 N
   Carrying capacity	1500 kg	1500 kg
   Net weight	51 kg	52 kg

7. Intended application domain
   Designed for mobile robots (AGVs), pallet stackers, pallet trucks, sweepers, aerial work platforms, etc.

Advantages of HW250 Horizontal Drive Wheel

From those features, here are what the advantages are (or implications) in real-world use:

• High load capacity
  With a carrying capacity of 1,500 kg, this wheel is suited for heavy-duty AGV or material handling applications (e.g. large loads, pallet systems).

• Strong traction
  The rated traction (up to 1,800 N in the higher-power version) means good grip even under heavier loads or in demanding conditions.

• Flexibility in speed and torque
  The two variants allow you to select based on your desired tradeoff of torque vs speed. The higher-power version offers higher torque and marginally higher top speed.

• Precision steering & control
  The use of gear-grinding on the rotary mechanism plus support for precise control protocols (CANopen, EtherCAT, etc.) means you can achieve tight, accurate steering performance — important in tight aisles or for complex motion paths.

• Ease of maintenance
  Because the wheel is detachable and the brake is external, servicing, replacement, or repair of parts is simpler, reducing downtime.

• Reliable and durable mechanical design
  The planetary gearbox, good bearing design, external brake, and careful gear manufacturing contribute to lower failure rates, longer life, and stable performance under load cycles.

• Good range of control integration
  Supporting multiple control buses and pulse-based control gives flexibility in system architecture (e.g. if your control electronics use CANopen or EtherCAT, you can directly integrate).

• Decent speed capability
  Travel speeds up to ~70–75 m/min are reasonable for many industrial material transport applications.

• Compact steering angle
  ±110° of steering gives flexibility while ensuring that the steering mechanisms don’t need to rotate excessively or require very large physical clearance.
