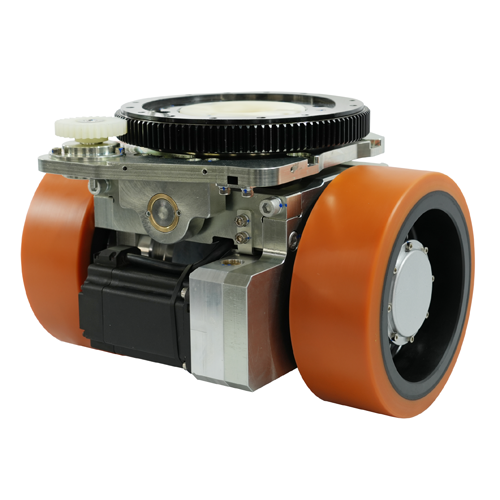

This high-performance drive system features dual 3kW servo motors, delivering 1066Nm torque for heavy-load transport at 60.7m/min. With 180°+ steering, IP54 protection, and multi-layer safety controls, it ensures precise, stable operation in harsh industrial environments while enhancing efficiency and safety.
| Main performance parameter | ||
| Model | HW400-SM3000-48-62-DS | |
| perfomance index | parameter | |
| Travel motor | Motor type | Permanentmagnet synchronous servo motor |
| Motor power KW | 3kw (two) | |
| Voltage V | 48 | |
| Rated current A | 72 | |
| Rated torque Nm | 9.55 | |
| Rated speed r/min | 3000 | |
| Encorder type | Incrmental encorder | |
| Gearbox | Reducer type | Secondary gear reduction |
| Reducer ratio | 60.7 | |
| Brake | Brake torque Nm | 16.5 |
| Rated Voltage | DC24 | |
| Wheel | Tyer material | Polyurethane/Rubber |
| Wheel size | φ400X15 | |
| Other | Steering limit angle | ±180° |
| Travel speed m/min | 0-34 | |
| Rated traction N | 9790 | |
| Carrying capacity Kg | 6000 | |
| Net weight Kg | 255 | |
| Motor power optional Used for mobile robots (AGV), pallet stackers, pallet trucks, sweepers, aerial work trucks, etc. | ||
1. Powerful Drive, High - efficiency and Stability
Equipped with dual servo motors, each motor has a rated power of 3kW, a rated speed of 3000r/min, and a rated torque of 9.65N·m, delivering robust power. With a drive wheel speed ratio of 62, a maximum speed of 60.7m/min, a rated output torque of 1066N·m, and a static load of 7000kg, it can operate efficiently and stably for both heavy - load transportation and rapid transfer tasks, significantly enhancing the operational efficiency of industrial vehicles.
2. Precise Steering, Flexible Maneuvering
The speed ratio of the large gear to the small gear is 220/30, the steering angle is greater than 180°, and the maximum turning diameter is 740mm. Coupled with an absolute encoder (model ADX - C038L8 - MA12 / 1284CP - P061), it enables precise steering control. Whether it's flexible steering in a narrow space or accurate driving along a complex path, it can handle tasks with ease, effectively improving operational flexibility and accuracy.
3. Multiple Protections, Safety and Reliability
The motor protection level reaches IP54, providing excellent dust - proof and splash - proof capabilities, making it suitable for complex industrial environments such as dusty and wet conditions. With a braking voltage of 24V and a braking torque of 16.5N·m, it is also equipped with electrical limits of 110 degrees on each side, mechanical limits of 120 degrees on each side, and three PNP normally - closed detection switches. These comprehensively safeguard the safe operation of the equipment, reducing the risk of failures and extending the service life.
Contact us for a drive system solution for your AGV.
