Independent dual-motor drive for fast response and small turning radius;
Two-stage gear reduction box provides high torque output, ensuring power stability under heavy loads;
Electric differential control scheme simplifies mechanical structure, reducing maintenance costs and enhancing system reliability.
| Main performance parameter | ||

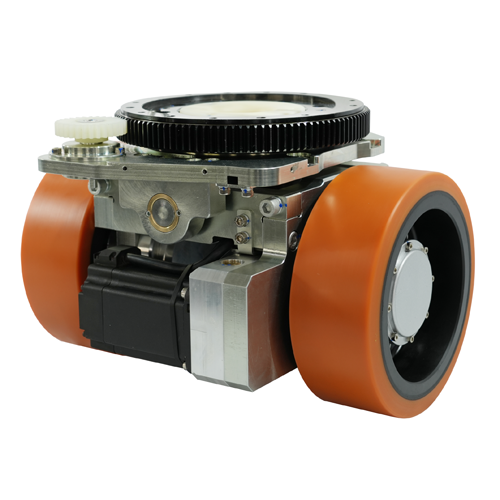

| Model | HW280-SM3000-48-52-DS | |
| perfomance index | parameter | |
| Travel motor | Motor type | Permanentmagnet synchronous servo motor |
| Motor power KW | 3kw (two) | |
| Voltage V | 48 | |
| Rated current A | 77.7 | |
| Rated torque Nm | 14.33 | |
| Rated speed r/min | 2000 | |
| Encorder type | Incrmental encorder | |
| Gearbox | Reducer type | Secondary gear reduction |
| Reducer ratio | 51.81 | |
| Brake | Brake torque Nm | 16.5 |
| Rated Voltage | DC24 | |
| Wheel | Tyer material | Polyurethane/Rubber |
| Wheel size | φ280X120 | |
| Other | Steering limit angle | ±180° |
| Travel speed m/min | 0-34 | |
| Rated traction N | 9790 | |
| Carrying capacity Kg | 6000 | |
| Net weight Kg | 255 | |
| Motor power optional Used for mobile robots (AGV), pallet stackers, pallet trucks, sweepers, aerial work trucks, etc. | ||
Very high load support: With a carrying capacity around 6,000 kg, this wheel is suited for large mobile platforms, heavy-duty AGVs, automated transport units or industrial robots handling very heavy payloads.
Exceptional traction: Rated traction of nearly 9,800 N gives strong driving force under heavy loads, which helps when moving large masses, starting/stopping under load, or dealing with uneven floors.
Robust drive system: The dual motor design + large reduction gearbox ensure high torque output, stable performance under heavy load and good mechanical reliability (important in harsh or continuous operation).
Integrated steering flexibility: A ±180° steering limit implies very good maneuverability, allowing the drive wheel to rotate a full or near-full turn – beneficial for tight turns, complex floor layouts, or omnidirectional behaviour in heavy systems.
Compact wheel size for load class: Although handling huge loads, the wheel size (φ280×120 mm) remains relatively compact compared to some forklift wheels, enabling more efficient design and possibly lower platform height.
Choice of tyre material: Polyurethane or rubber tyres allow tailoring to floor type (indoor smooth vs rough surface) to optimise grip, wear and noise.
Brake included for safety: The built-in brake ensures safe stopping/holding of heavy loads, important in heavy duty AGV or transport units.
Designed for heavy industrial environments: As part of the heavy duty category, this unit is engineered for high durability, reliability and lower maintenance in demanding use-cases (warehouses, ports, high throughput logistics).
Simplified system architecture: By offering a high‐capacity, integrated drive wheel, system designers can reduce the number of separate components (motor + gearbox + wheel) and simplify mounting, alignment, wiring and control for large mobile platforms.
Contact us for a drive system solution for your AGV.
