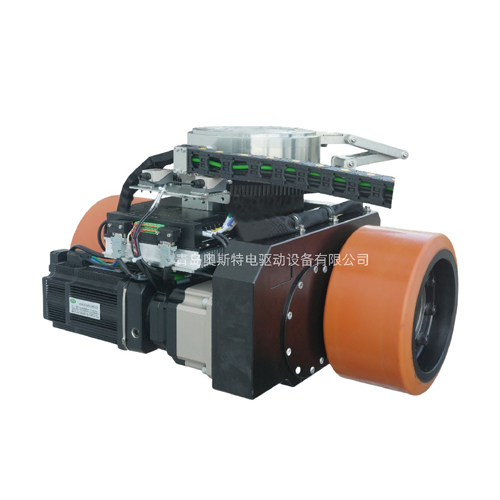

HW400 Double Wheel Heavy Load

HW400 Double Wheel Heavy Load Drive System delivers extreme 100,000kg capacity with dual 3kW servo motors (9.55Nm torque) and 63:1 reduction ratio. Featuring massive φ400×150mm wheels, it achieves 45m/min speed and 5220N traction, offering customizable speed ratios and motor power for ultra-heavy industrial AGV applications.

Specification of HW400 Double Wheel Heavy Load

model		HW400-SM3000-48-62-DS
Walking motor	Motor type	servo motor
	power of motor kW	3
	voltage V①	48
	rated current A	72
	rating torque Nm	9.55
	Rated rotation speed, r / min	3000
	Encoder type	Incremental type
gear case	Types of deceleration boxes	Secondary gear deceleration
gear case	reduction gear ratio	63：1
braking	Brake torque is Nm	16.5
braking	rated voltage V	DC24
tyre	Wheel material	Polyurethane / Rubber
tyre	Wheel size	φ400X150
Turn part	Motor type	-
	power of motor kW	-
	voltage V	-
	rated current A	-
	rating torque Nm	-
	Rated rotation speed, r / min	-
	Types of deceleration boxes	-
	reduction gear ratio	-
	Encoder type	-
else	Turn to limit Angle	±180°
	Driving speed of m / min	0-45
	Rated traction force of N	5220
	carrying capacity Kg	100000
	net weight Kg	170

※ Speed ratio is optional

※ Motor power is optional
