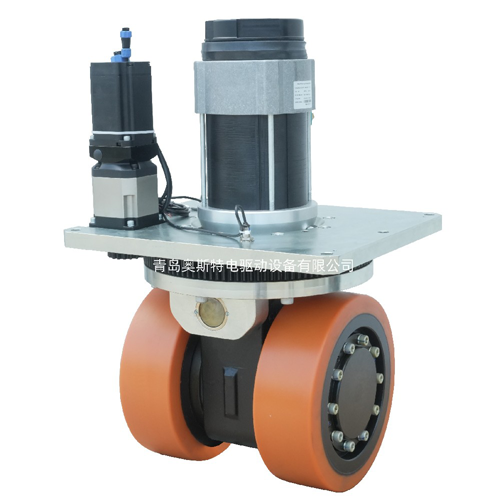

Engineered specifically for forklift-style automated guided vehicles,the mechanical differential structure has small steering resistance。 the HL300 series combines high-torque AC drive motors and absolute encoder steering servos to deliver unmatched maneuverability in tight spaces.
| Main performance parameter | |||
| Model | HL300-AC2500-48-33-SL | HL300-AC3000-48-74-SL | |
| perfomance index | Parameter | parameter | |
| Travel motor | Motor type | AC induction motor | Permanent magnet synchronous servo motor |
| Motor power KW | 2.5 | 3 | |
| Voltage V | 48 | 48 | |
| Rated current A | 65 | 72 | |
| Rated torque Nm | 7.1 | 9.55 | |
| Rated speed r/min | 3352 | 3000 | |
| Encorder type | - | incremental encoder | |
| Gearbox | Reducer type | Secondary gear reduction | Secondary gear reduction |
| Reducer ratio | 33.07 | 74 | |
| Brake | Brake torque Nm | 25 | 16.5 |
| Rated Voltage | DC24 | DC24 | |
| Wheel | Tyer material | Polyurethane/Rubber | Polyurethane/Rubber |
| Wheel size | φ300X100 | φ300X100 | |
| Steering part | Motor type | Permanentmagnet synchronous servo motor | Permanentmagnet synchronous servo motor |
| Motor power KW | 1 | 1 | |
| Voltage V | 48 | 48 | |
| Rated current A | 26.7 | 26.7 | |
| Rated torque Nm | 3.18 | 3.18 | |
| Rated speed r/min | 3000 | 3000 | |
| Reducer type | Secondary gear reduction | Secondary planetary gear reduction | |
| Reduction ratio | 322.22：1 | 322.22：1 | |
| Encorder type | Incrmental encorder/Absolute encoder | Incrmental encorder/Absolute encoder | |
| Other | Steering limit angle | ±180° | ±180° |
| Travel speed m/min | 0-96 | 0-40 | |
| Rated traction N | 1410 | 4240 | |
| Carrying capacity Kg | 4000 | 4000 | |
| Net weight Kg | 170 | 180 | |
| Used for mobile robots (AGV), pallet stackers, pallet trucks, sweepers, aerial work trucks, etc. | |||
Dual-Motor System
Travel Motor: 2.5-3KW AC induction/PMSM options (48V)
Steering Motor: 1KW servo with 322:1 gear reduction
Smart Control Ready
Supports CANopen, Modbus, EtherCAT & pulse control
±180° steering range for full directional flexibility
Heavy-Duty Performance
4,000kg load capacity
Maintenance Optimized
Quick-detach wheel design (φ300×100mm)
Hardened gear teeth for precision and durability
Dual gearbox options: 33.07:1 or 74:1 reduction ratios
Polyurethane/rubber tires for varied floor conditions
24V electromagnetic brake (16.5-25Nm torque)
Built for Demanding Material Handling - From Warehouses to Ports.
Proven reliability - Mature gearbox technology with low failure rates
Cool-running design - Reduced heat generation during operation
Precision engineered - Ground gear surfaces for smooth control
The Vertical Steering Solution for Heavy-Duty AGV Applications.
Contact us for a drive system solution for your AGV.
