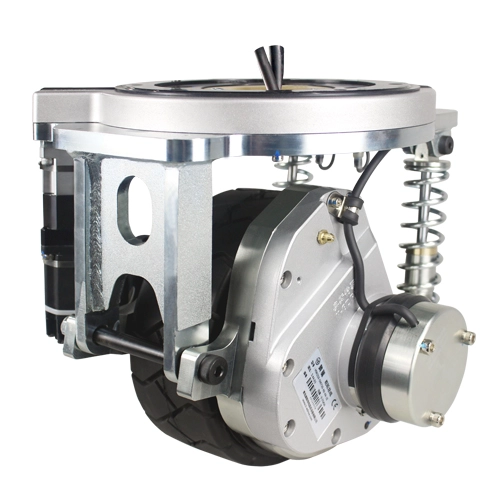

Engineered for AGVs and material handling equipments, the HW210 damping drive wheel combines shock absorption technology, ensuring reliable operation in warehouse automation, production lines, and heavy-duty transport.
| Main performance parameter | ||
| Model | HW210-SM750-48-44-JZ | |
| perfomance index | Parameter | |
| Travel motor | Motor type | Permanentmagnet synchronous servo motor |
| Motor power KW | 0.75 | |
| Voltage V | 48 | |
| Rated current A | 19 | |
| Rated torque Nm | 2.39 | |
| Rated speed r/min | 3000 | |
| Encorder type | Incrmental encorder | |
| Gearbox | Reducer type | Secondary gear reduction |
| Reducer ratio | 44.03:1 | |
| Brake | Brake torque Nm | 6 |
| Rated Voltage | DC24 | |
| Wheel | Tyer material | Rubber |
| Wheel size | φ210X75 | |
| Steering part | Motor type | Permanentmagnet synchronous servo motor |
| Motor power KW | 0.2 | |
| Voltage V | 48 | |
| Rated current A | 5.1 | |
| Rated torque Nm | 0.64 | |
| Rated speed r/min | 3000 | |
| Reducer type | Secondary planetary gear reduction | |
| Reduction ratio | 275：1 | |
| Encorder type | Absolute encoder | |
| Other | Steering limit angle | ±110° |
| Travel speed m/min | 0-44.9 | |
| Rated traction N | 910 | |
| Carrying capacity Kg | 500 | |
| Net weight Kg | 38 | |
Reduction ratio optional ： 24.685, 27.43 48.9. Motor power optional 1KW Used for mobile robots (AGV), pallet stackers, pallet trucks, sweepers, aerial work trucks, etc. | ||
Contact us for a drive system solution for your AGV.
